NP4-300

4 Channel amp, 4 x300W 8Ω 100v (Bridge)

Request a quote

Quote

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

Description

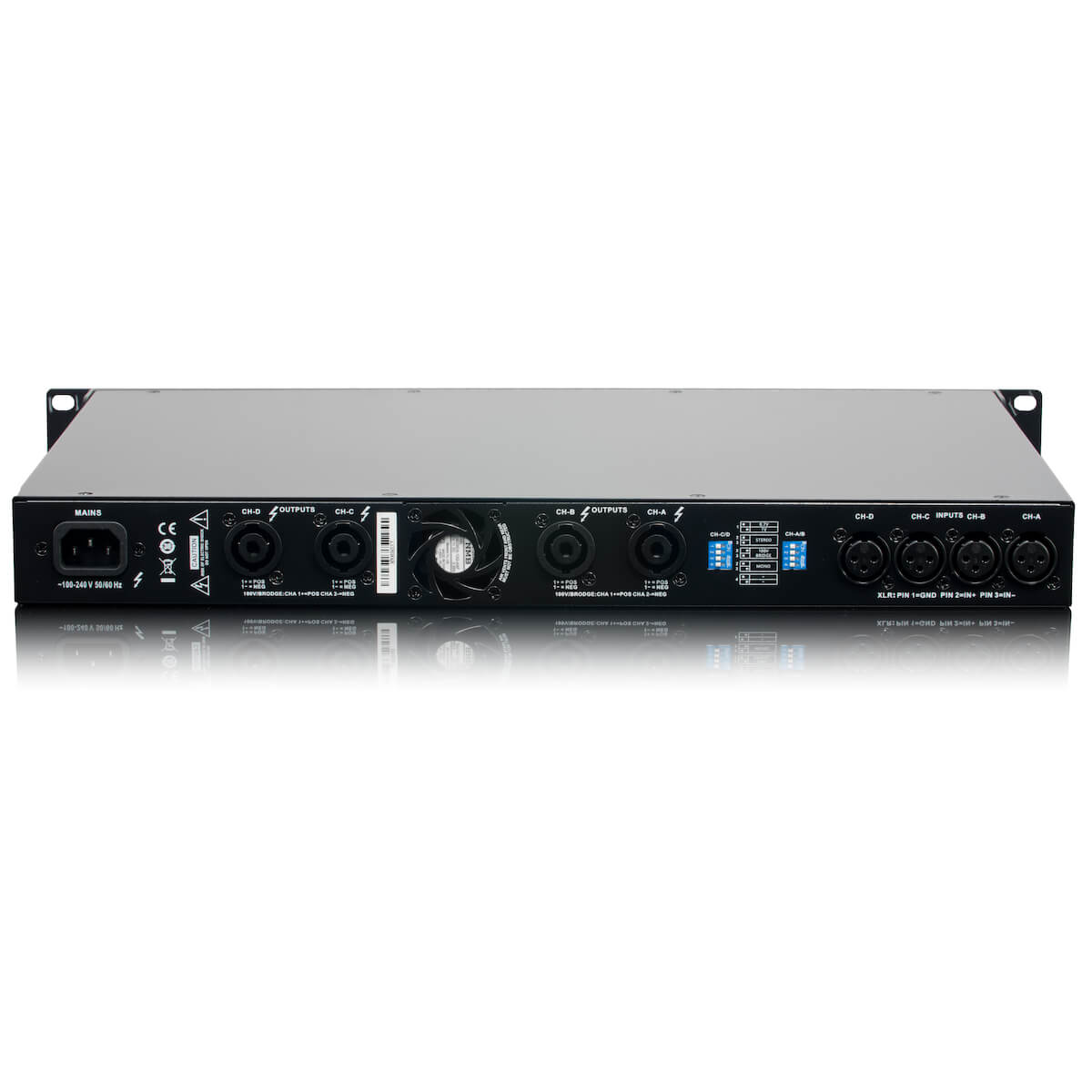

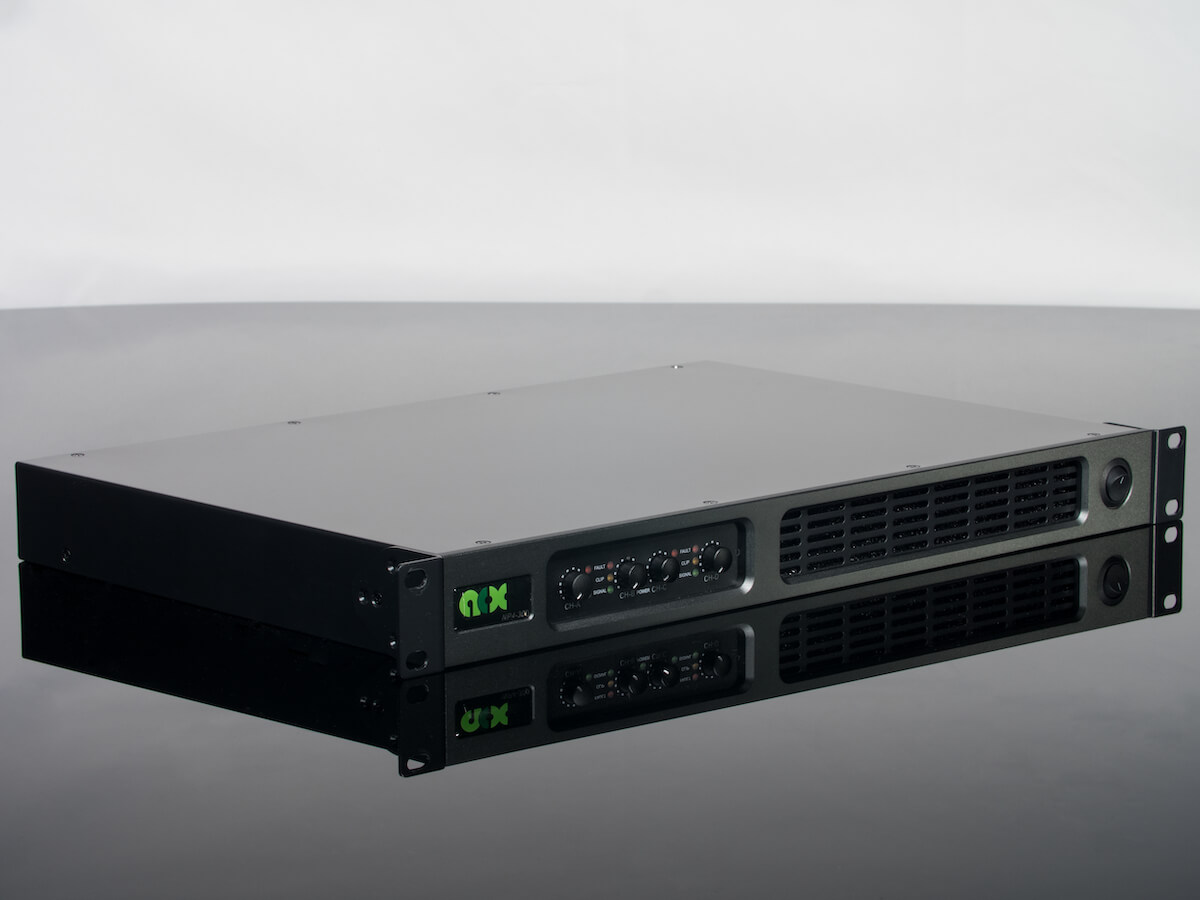

The ACX NP4-300 is a high-quality Class D power amplifier designed for the fixed installation market. With a circuit structure based on the company’s independent development of multi-loop control technology and excellent technical indicators, ACX thus guarantees high quality and reliability. The NP4-300 power amplifier can drive both low-impedance and 100-volt speaker systems.

Specifications

  • High energy efficiency, in line with the trend towards energy saving and emission reduction
  • Can drive a low impedance load (8 Ω/4 Ω) or a high impedance distributed load (100 V constant voltage)
  • Low fan noise, which meets the requirements of the near field
  • Stereo, parallel, bridge mode
  • Temperature power control and overheating protect
  • Rated Power 8Ω/Stereo: 4x300 W
  • Rated Power 4Ω/Stereo: 4x450 W
  • Rated Power 16Ω/Bridge: 2x600 W
  • Rated Power 8Ω/Bridge: 2x900 W
  • Rated Power Constant Pressure: 2x900 W/100 V
  • Input sensitivity: 1 Vrms, 0.7 VRMS selectable
  • THD+N:0.05%
  • IMD-SMPTE: 0.05%
  • DIM30: 0.05%
  • Crosstalk suppression: ≥75 dB
  • Frequency Response: ≤±0. 2db
  • Input impedance: 20kΩ(balance) ,10kΩ(unbalance)
  • Damp Coefficient(8Ω,20Hz-200Hz): ≥1000
  • SNR(A weighted 20Hz-22kHz): ≥100dB
  • Power Requirements: 110 ~ 240vac (± 10%), 50-50 ~ 60Hz
  • Protection: Power undervoltage protection, Power Amplifier Output DC protection, overheating protection, temperature power control, overload power control
  • Size(W×H×D): 480x44x290mm
  • Net Weight: 8kg
