D1660
Multi channel amp 16x 60 Watt at 4Ω
Features
- 16 channel amplifier giving 16x 60 Watt at 4 Ohm impedance
- Simple in use and easy to install
- Perfect for multizone solution
- Independent volume know for each channel
- Independent switch to select stereo/ bridge to avoid signal interference when assigning input channels
- Built in protection mode by limiting output signal , preventing overheating and overload
Request a quote
Quote
"*" indicates required fields
- Great Technical Support
- Trusted Local Expertise
- Fast and Reliable Shipping
Description
The 16 channels D1660 amplifier, can deliver a power of 60W at 4 Ohm loads. The perfect solution for installed Multi-Zone audio distribution systems, with great simplicity in use and installation.

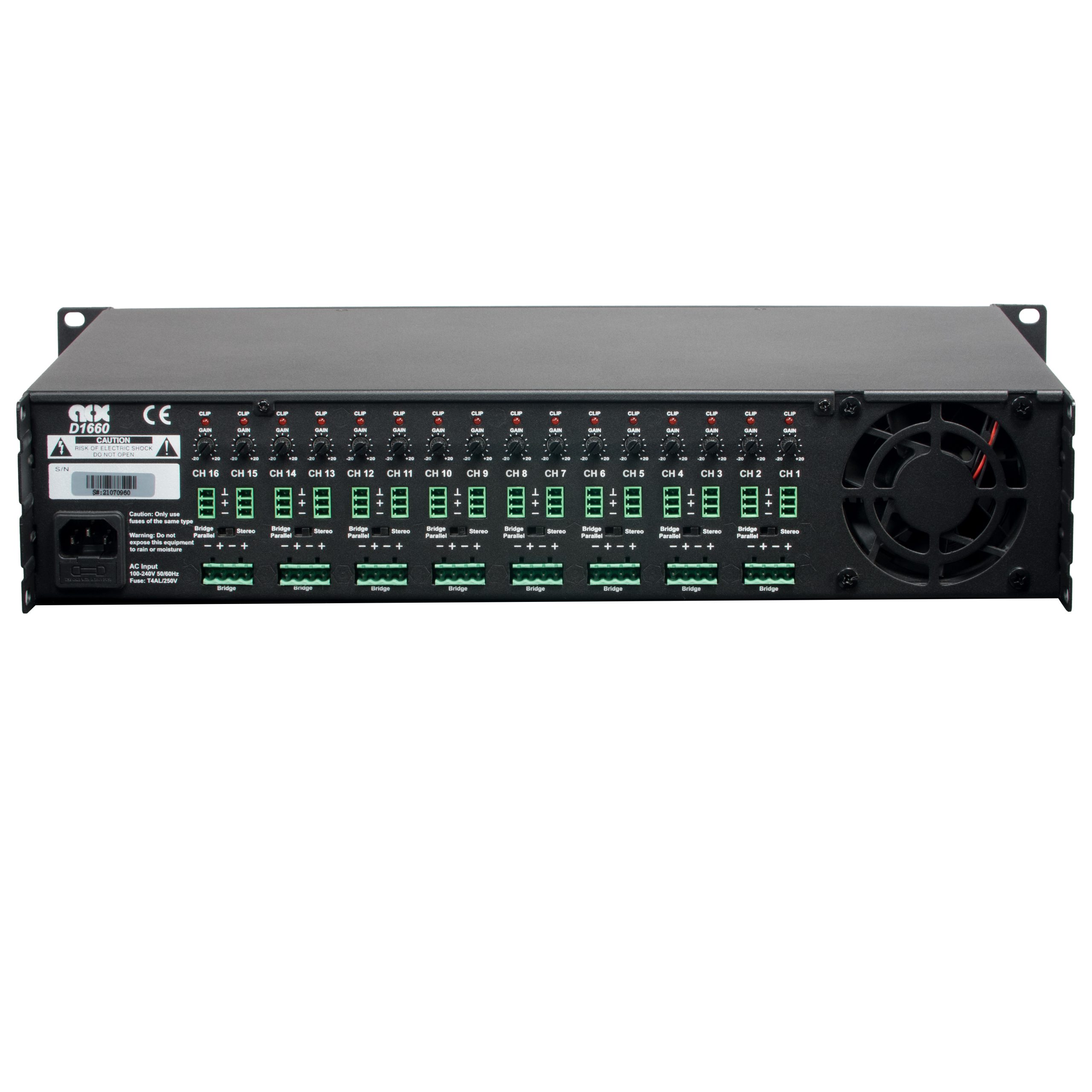

All done in double rack space, steel 19”rack mount housing. Inputs and outputs are all performed with 3-pin Euro-Terminal block connectors, allowing balanced input signals. Each individual channel is fitted with a separate gain control potentiometer. Stereo/Bridge & Parallel via a switch to avoid cable clutter when distributing the input signal.
Built-in multipurpose protection circuit protecting against DC malfunction, short circuit, overheating, overload, and limits the signal when necessary.
Specifications
-
- Channel number: 16 analog input, 16 speaker output
- Phoenix connectors on Input/output ports
- Output power(1% THD+N, 1kHz @ 4Ω): 60Wx16
- Output power(1% THD+N, 1kHz @ 8Ω): 30Wx16
- Total system efficiency(2 x 250W@ 8Ω): 88%
- Peak Output Current: 9.2A
- THD+N (1kHz @ 1W): 0.1%
- Dynamic range: 110dB(A)
- Dimensions : 483x325x88 mm
- Weight : 8,6 kg
- Idle Noise: 100μV(A)
- Impedance (1kHz): 200 mΩ
- Main input voltage: 90VAC – 240VAC
- Power Supply: IEC
